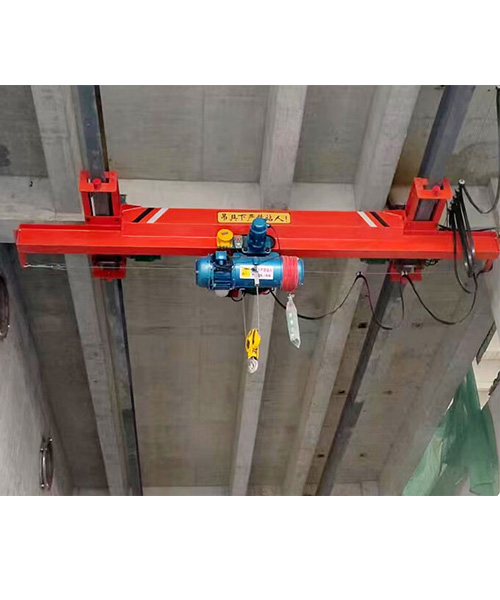

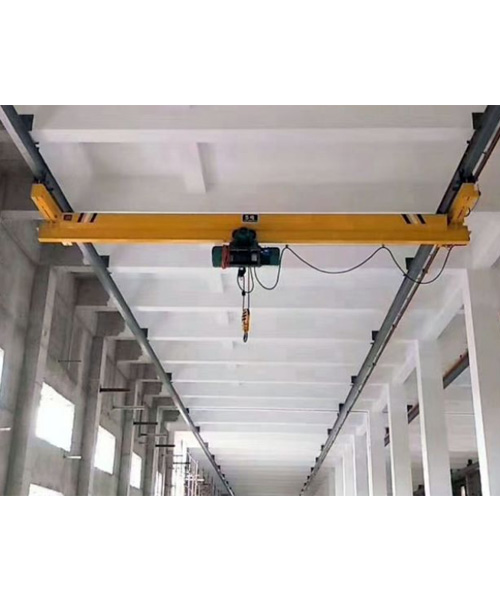

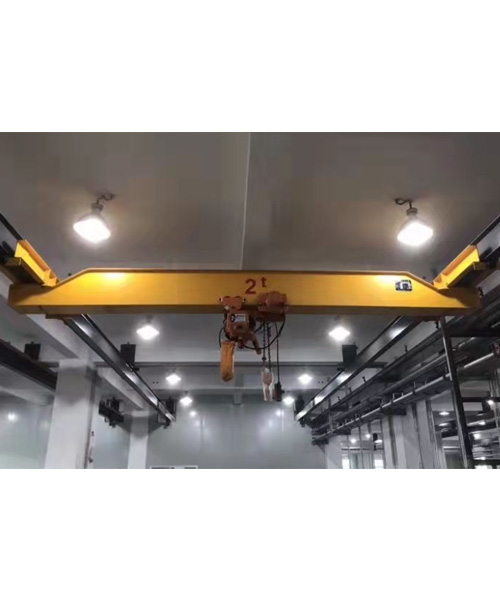

LX Suspension Crane

Space-saving Design — Suspended installation leaves ground space free for workers and equipment.
Flexible Layouts — Suitable for straight, curved, and custom monorail track systems.
Lightweight & Economical — Lower structure weight and reduced investment compared with overhead cranes in some layouts.
Easy Integration — Can be installed under gantries, mezzanines, or suspended from existing roof beams.
Safety Options — End stops, buffer, overload protection, limit switches and secure rail fastening.
Customizable — Single-girder or multi-trolley arrangements, motorized trolleys available for traversing long runs.

The LX Suspension Crane (also called underslung or monorail suspension crane) is a lightweight, flexible lifting solution designed to be suspended from existing building structures or runway beams. It is ideal for production lines, assembly stations, and workshops where floor space is limited and a fixed or semi-fixed lifting path is required. Typical capacities range from 0.5 t to 10 t, and spans and layouts can be customized to suit straight rails, curved rails or complex monorail routing.

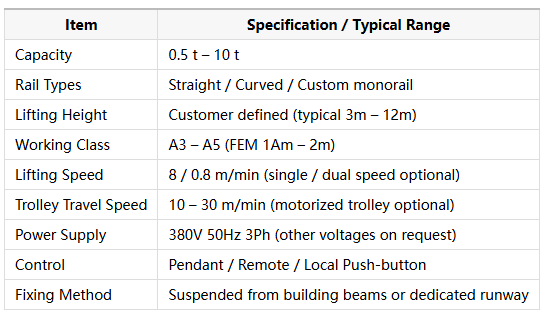

🔹 Typical Technical Parameters

Notes: Exact parameters depend on rail design, suspension method and local structural conditions. We provide engineering drawings and load calculations upon inquiry.

🔹 Main Components

Suspension Rail / Monorail — Hot-rolled or welded rails profiled for trolley compatibility.
Hoist & Trolley — hoist mounted on a manual or motorized trolley.
End Stops & Buffers — Safety buffers at route ends to prevent overrun.
Suspension Hangers — Bolted or welded hangers to attach rail to building structure.
Electrical & Control System — Pendant or remote controller with necessary safety interlocks.
Braking & Limit Devices — Lifting limit switch, emergency stop, and overload limiter.

🔹 Applications

Assembly lines and conveyors
Automotive component workshops
Light fabrication and electronics manufacturing
Warehouses with constrained floor space
Paint shops and finishing lines (with suitable corrosion protection)
Any production process that requires repeated handling along a fixed route

🔹 Advantages vs Overhead Cranes (Quick Guide)

Lower initial investment for fixed-route lifting solutions.
Simpler installation when building structure supports suspension.
Better fit for linear material flow and repetitive operations.
Not suitable when full-area coverage or high-mobility lifting is required.

🔹 Get a Quote

Need a custom LX monorail system or layout review?
📩 Send us: capacity, rail route sketch (top view), lifting height, power supply, and working frequency.
We will provide a tailored layout drawing and quotation quickly.
